CE Certified Surgical Table Manufacturers & Exporter

Precision Electro-Hydraulic & Mechanical Operating Tables Engineered for Modern Surgical Suites, Orthopedic Clinics, Eye Surgery Centers, and Veterinary Care.

Featured Medical & Surgical Operating Tables

Explore our export-grade, CE & ISO certified surgical positioning systems designed for clinical durability, radiological access, and seamless surgical control.

Ophthalmology Electric Ophthalmological Operating Table Eye Surgery Table Height Adjustable Surgical OT Table CE ISO13485 OEM Factory

Electric Ophthalmological Operating Table Eye Surgery Table Height Adjustable Surgical OT Table CE ISO13485 OEM Factory

Send an Inquiry

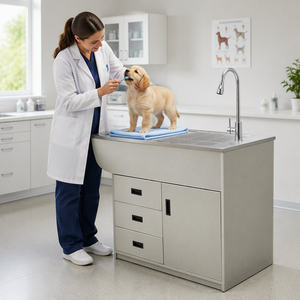

Veterinary Veterinary Stainless Steel Durable Table For Dog & Cat Surgery And Exam With Drawers-Vet Clinic Equipment

Veterinary Stainless Steel Durable Table For Dog & Cat Surgery And Exam With Drawers-Vet Clinic Equipment

Send an Inquiry

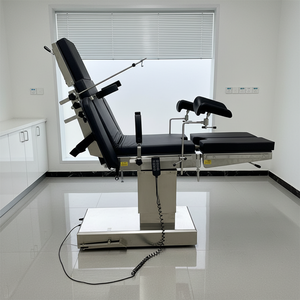

Orthopedic 2026 Surgical Medical Clinic and Hospital Orthopedic Examination Use CE ISO Certified Electric Operating Table

2026 Surgical Medical Clinic and Hospital Orthopedic Examination Use CE ISO Certified Electric Operating Table

Send an Inquiry
Multi-Function LK/ Four-control Comprihensive Operating Table Multifunctional Customizable, Surgical Table, Hospital Electric Operating Table

LK/ Four-control Comprihensive Operating Table Multifunctional Customizable, Surgical Table, Hospital Electric Operating Table

Send an Inquiry

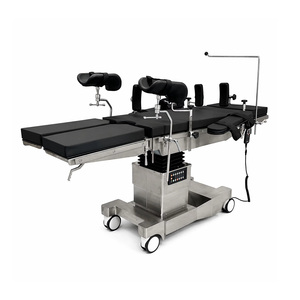

General Surgery Cost-effective Hospital Surgery Room Operation Theater Table with Germany 12cm Wheels

Cost-effective Hospital Surgery Room Operation Theater Table with Germany 12cm Wheels

Send an Inquiry

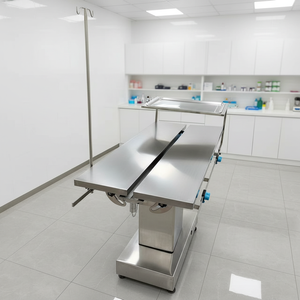

Vet Elevation Veterinary Procedure-ready Smooth Elevation Control Stainless Steel Construction Animal Surgical Examination Table

Veterinary Procedure-ready Smooth Elevation Control Stainless Steel Construction Animal Surgical Examination Table

Send an Inquiry

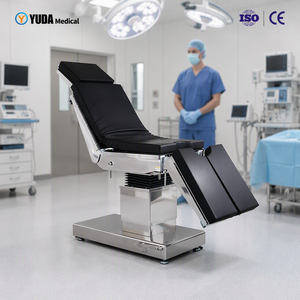

Emergency Care Cost Effective Yuda DST-1A Electric Surgical Table Operating Bed Hospital Grade Emergency ICU General Surgery Multi Position CE

Cost Effective Yuda DST-1A Electric Surgical Table Operating Bed Hospital Grade Emergency ICU General Surgery Multi Position CE

Send an Inquiry

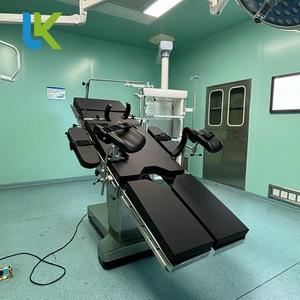

Orthopedic OT LK Brand LeKang Medical Equipment Orthopedic Electric Operating Table Multifunctional Surgical Table Metal CE Certified

LK Brand LeKang Medical Equipment Orthopedic Electric Operating Table Multifunctional Surgical Table Metal CE Certified

Send an Inquiry
77+
Global Export Markets
25+
Years Engineering Expertise
100%
CE MDR & ISO 13485 Compliant
500+
Hospital & Clinic Deployments

Engineering Excellence in Surgical Table Manufacturing: A Technical Procurement Guide

In modern surgical suites, the operating table is no longer a passive piece of hospital furniture; it is a critical electro-hydraulic or electro-mechanical positioning device that directly influences clinical outcomes, surgical access, radiological imaging clarity, and patient safety. As a leading CE certified surgical table manufacturer and exporter based in Turkey, Erpomed integrates precision biomedical engineering with robust mechanical metallurgy to support healthcare facilities across 77+ countries.

"Information Gain & Clinical Insight: Modern surgical positioning systems require a dual-matrix focus—achieving sub-millimeter positioning precision for micro-surgeries while maintaining absolute structural rigidness under maximum patient loads up to 350 kg."

1. Critical Engineering Parameters for Operating Room Equipment Procurement

Procurement committees and hospital equipment sourcing directors must evaluate surgical tables beyond preliminary cost metrics. Below is an engineering overview of essential functional modules incorporated into international-grade surgical tables:

Radiolucency & C-Arm Compatibility

High-end surgical tables feature carbon-fiber tabletop panels with low X-ray attenuation coefficients (under 1.0mm Al equivalent). This design ensures crystal-clear intraoperative fluoroscopy imaging without artifacts during complex orthopedic, vascular, and spinal procedures.

Electro-Hydraulic Actuation Systems

Utilizing zero-leakage micro-hydraulic valves and German-engineered electric actuators (e.g., Linak or DewertOkin), modern surgical tables deliver vibration-free, smooth transitions across Trendelenburg (±30°), Lateral Tilt (±20°), and longitudinal sliding movements up to 350mm.

Infection Control & AIS304 Stainless Steel

Operating theater hygiene mandates seamless construction. Entire chassis structures, hydraulic column covers, and side rails are fabricated from corrosion-resistant AISI 304/316 grade stainless steel with high-grade anti-microbial memory foam mattresses enclosed in ultrasonic sealed PU fabric.

2. Specialized Surgical Table Classifications & Clinical Applications

Different clinical sub-disciplines demand tailored table kinematics and dedicated accessories. As an experienced exporter, our manufacturing portfolio addresses specialized surgical needs:

  • Ophthalmic & ENT Operating Tables: Designed with ultra-low minimum height profiles (down to 500mm) enabling surgeons to perform seated microsurgeries comfortably. Features ergonomic hand-rest bridges and ultra-quiet electric elevation.
  • Orthopedic Traction & Surgery Tables: Integrated with heavy-duty pelvic support frames, stainless steel traction arms, and split leg plates for seamless hip arthroplasty, leg fracture reductions, and lower extremity procedures.
  • General Surgery Multi-Position Tables: Equipped with dual-control systems (handheld remote control plus column override panel), built-in kidney elevators (up to 120mm lift), and flex/reflex electronic presets.
  • Veterinary Clinical & Surgical Tables: Custom stainless steel examination and procedure tables designed for veterinary hospitals, incorporating fluid drain gutters, tie-down cleats, and heavy-duty hydraulic foot pumps or electric lifts.

Comprehensive Technical Specification Comparison Matrix

Specification Feature General Electromechanical OT Table Premium Electro-Hydraulic Table Ophthalmology Specialty Table Veterinary Stainless Table
Primary Mechanism Electric Motor Drive Electro-Hydraulic System Precision Motorized Lift Hydraulic Foot Pump / Manual
Max Load Capacity 250 kg (550 lbs) 350 kg (770 lbs) 200 kg (440 lbs) 150 kg (330 lbs)
Radiolucent Tabletop Phenolic Resin / Acrylic Full Carbon Fiber Segmented Head Section Optimized N/A (Full Stainless Steel)
Trendelenburg / Reverse ≥ 20° / ≥ 20° ≥ 30° / ≥ 30° ≥ 15° / ≥ 15° Manual Tilt Option
Lateral Tilt (Left/Right) ≥ 15° / ≥ 15° ≥ 20° / ≥ 20° N/A V-Top Angular Adjustment
Castor & Braking System Central Braking (12cm Wheels) Electro-Hydraulic Central Lock Individual Lock Castors Leveling Feet / Lockable Wheels
International Certifications CE MDR, ISO 13485, ISO 9001 CE MDR, ISO 13485, EN 60601-1 CE MDR, ISO 13485 CE Mark Standard

Future Procurement Trends in Surgical Equipment (2026–2030 Horizon)

Emerging healthcare delivery models, robotic-assisted surgeries, and stringent global infection control regulations are rapidly transforming surgical table procurement strategies worldwide.

Hybrid OR Integration & Modular Interoperability

Future operating rooms demand seamless synergy between intraoperative imaging (CT, MRI, 3D C-Arms) and surgical positioning platforms. Table manufacturing is moving toward modular carbon-fiber extensions and zero-interference bases that allow 360-degree radiological access.

Robotic Surgery Synchronization

As robotic surgical systems become standard in urology and gynecology, operating tables require automated positional communication. Dynamic articulation and memory-preset synchronization minimize tissue traction forces during robotic arm maneuverability.

Total Cost of Ownership (TCO) & Modular Servicing

Global hospital procurement officers are shifting from initial purchase price evaluations to TCO frameworks. Manufacturers providing modular replacement components, standardized hydraulic valves, and quick-disconnect electronics secure long-term hospital vendor contracts.

Why Healthcare Organizations Partner With Erpomed

Combining 25+ years of manufacturing lineage in Turkey with export operations spanning 77+ countries worldwide.

Factory Advantage

Direct OEM & ODM Customization

From custom frame dimensions, specialized voltage configurations (110V–240V), to tailored brand labeling and custom control software, our engineering team provides complete OEM factory support for global distributors.

Quality Matrix

Strict CE MDR & ISO 13485 Compliance

Every surgical table undergoes multi-stage structural load tests, electrical safety insulation verification (EN 60601-1), and 72-hour hydraulic pressure drop testing before international export packaging.

Global Supply

Export Logistics & After-Sales Network

Situated in Gaziantep, Turkey, our strategic export hub enables fast sea and overland shipping across Europe, the Middle East, Africa, and the Americas with complete spare parts availability guaranteed for 10 years.

Frequently Asked Questions (FAQ) for Surgical Table Procurement

Key technical, regulatory, and purchasing answers for hospital procurement specialists, biomedical engineers, and medical equipment distributors.

What certifications are mandatory for importing surgical tables into the European Union and global markets?

Surgical tables imported into the EU must strictly comply with the Medical Device Regulation (CE MDR 2017/745). Additionally, manufacturing facilities should be certified under ISO 13485 (Medical Devices Quality Management Systems) and ISO 9001. Electrical safety must conform to IEC 60601-1 and IEC 60601-2-46 standards for surgical equipment.

What is the difference between electro-hydraulic and electromechanical surgical tables?

Electro-hydraulic tables utilize an electric motor to drive a hydraulic oil pump, providing exceptionally smooth, silent movement and superior weight-bearing capacity (up to 350-450 kg) ideal for heavy-duty multi-specialty operating rooms. Electromechanical tables use motorized screw jacks or linear actuators; they are cost-effective, precise, and highly reliable for general surgery and specialty clinics.

How does tabletop radiolucency impact intraoperative surgical workflow?

Tabletop radiolucency measures how easily X-rays pass through the table material. Carbon-fiber tabletops provide maximum radiolucency (minimal X-ray absorption), allowing low-radiation exposure for patients and surgical staff while providing crisp, high-contrast fluoroscopic imaging during orthopedic, cardiovascular, and neurological surgeries.

What emergency safety override features are built into your electric surgical tables?

Erpomed surgical tables feature dual-control redundancy: a primary wired handheld controller and an emergency column-mounted control panel. Furthermore, all units integrate an internal rechargeable backup battery supplying up to 80-100 full operational cycles in case of main power failure, alongside a mechanical emergency floor brake lock release.

Do you offer custom OEM branding and specialized voltage setups for global export tenders?

Yes, as a primary manufacturer and exporter, we support OEM/ODM customization for government hospital tenders and regional distributors. This includes customized operating panel graphics, regional power plug configurations (110V/60Hz to 220V/50Hz), brand label insertion, and custom-designed side rail accessory clamps.

What routine preventative maintenance is required for hydraulic operating tables?

Preventative maintenance involves bi-annual inspections of hydraulic fluid levels and seal integrity, checking tightness of structural joints, testing electrical grounding continuity (< 0.1 ohm), and inspecting side-rail clamp locking mechanisms. Anti-microbial mattress pads should be regularly sanitized with non-corrosive, medical-grade disinfectants.

Require CE-Certified Surgical Tables for Your Hospital Project?

Contact our international medical engineering sales desk to receive detailed technical datasheets, tender specification docs, and direct factory pricing quotes.
